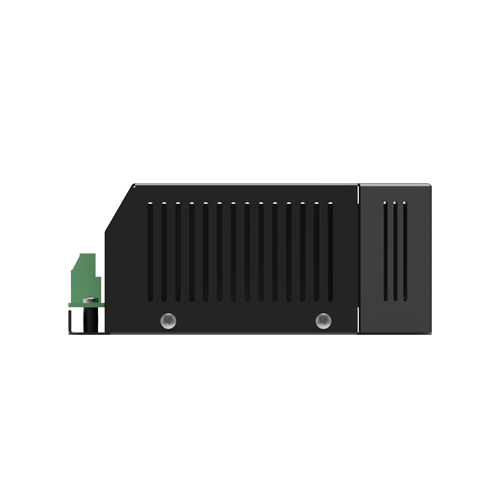

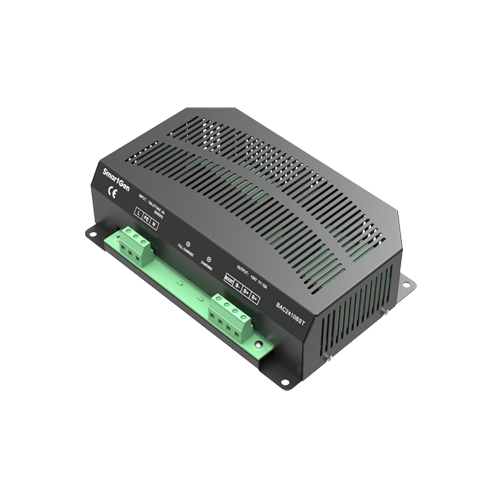

SmartGen BAC2410BST Battery Charger

Technical Parameters:
Battery Voltage 24V
Max. Charging Current 10A
Rated Input Voltage AC (100?277)V
Max. Input Voltage Range AC (90?305)V
AC Input Frequency 50Hz/60Hz
Max. Input Current 4A
Operating Mode Two&Three segments
Maximum Efficiency AC 110V >82% ;AC 220V >90%
Operating Temp. (-30~+55)?
Storage Temp. (-40?+85)°C
Net Weight(kg) 1.15
Case Dimensions(mm) 205.5*131*55

Product Overview:
BAC2410BST Battery Charger applies up-to-date switching power supply device, and is designed especially for meeting the charging characteristics of lead-acid engine starter battery. It is applicable for long-term supplement (floating) charging and 24V battery pack.

PERFORMANCE AND CHARACTERISTICS

It employs switching power supply structure, with wide voltage range of input current, small case dimension, light weight, and high efficiency features.

Two-stage charging method or three-stage charging method can be used automatically according to needs (Three-stage: BOOST and B- are short circuited; Two-stage: BOOST is hung up;), both of which are designed based on battery charging characteristics, which prevents lead-acid battery over charging, and prolong the battery life to the most degree;

Build-in PFC circuit, which can calibrate the power factor above 0.99;

Build-in current protective circuit, which can give effective protection when overcurrent output, short circuit, or reverse connection occurs, and can recover output when above circumstances are eliminated;

Applicable for 24V battery pack charging, rated charging current 10A;

External LED status display: Green means full power indication; Red means charging indication;
