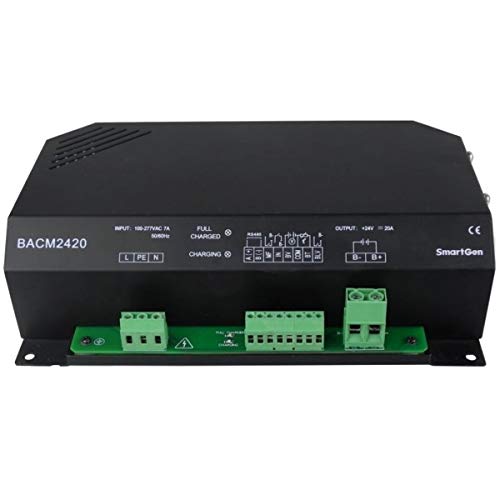

SmartGen BACM2420A Battery Charger

Technical Parameters:
Battery Voltage  12V/24V
Max. Charging Current  20A
Rated Input Voltage  AC(100~277)V
Max. Input Voltage Range  AC(90~305)V
AC Input Frequency  50Hz/60Hz
Max. Input Current  4.2A/8.2A
Power Factor Compensation  ●
Operating Mode  Two&Three segments
Temp. Compensation  ●
Communication  RS485
Auxiliary Input  ●
Maximum Efficiency  85%/90%
Operating Temp.  (-30～+55)°C
Storage Temp.  (-40～+85)°C
Net Weight(kg)  2.2
Case Dimensions(mm)  265*156*68

Product Overview:
BACM2420 battery charger is intelligent and multi-function which is specially designed for meet the charging characteristics of the lead-acid engine starter batteries. Suitable for 24V or 12V battery and the maximum charge current is 20A.

PERFORMANCE AND CHARACTERISTICS:
1) Switch power supply structure, wide input AC voltage range, small size, light weight, high efficiency rate;

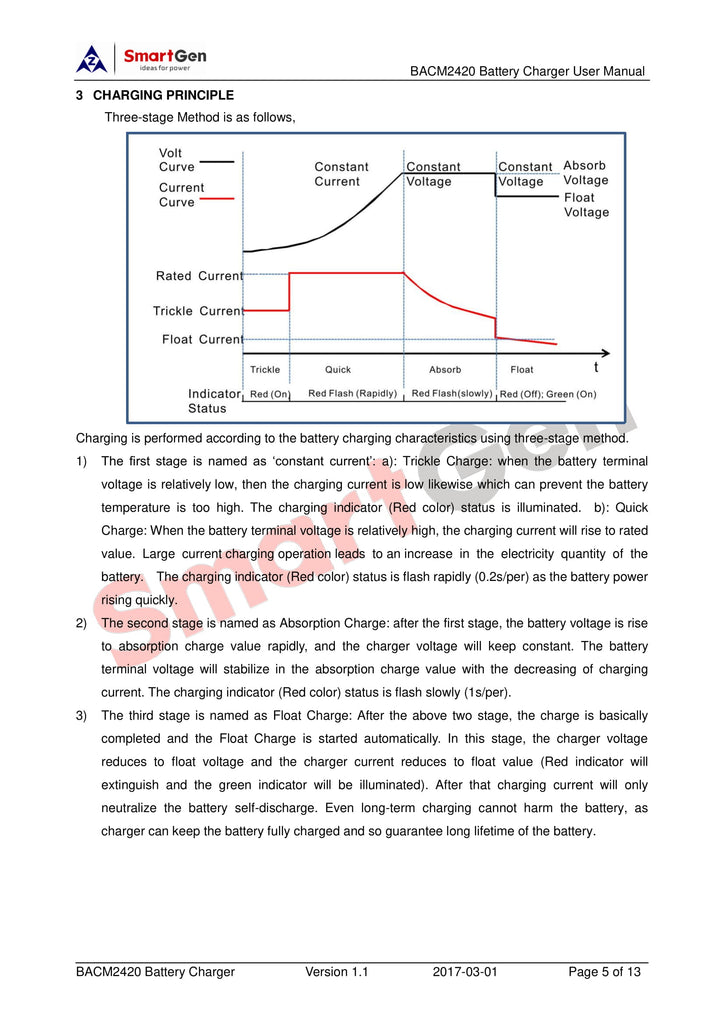

2) Users can select automatic two-stage charging process or automatic three-stage charging process as needed. Both the two charging process are carried out according to storage battery charging characteristics to prevent overcharging and significantly prolong battery lifetime;
3) Built-in PFC circuit can calibrate the power factor above 0.99;
4) Battery voltage detection ports can detect the battery voltage in real time;
5) Battery low voltage output port; it will output low level immediately after the battery voltage has fallen below the set value for preset delay;
6) Temperature sensor port allows for monitoring the battery temperature in real time and temperature compensation function which can prevent the battery temperature is too high effectively;
7) Mains failure port; It will output low level when the AC input is interrupted;
8) Standard RS485 communication port;
9) BACM2410 charger is suitable for 24V battery, or suitable for 12V battery after changing the configuration information; Rated current: 20A;
10) LED display: Full charged indication (Green light) and charging indication (Red light).
