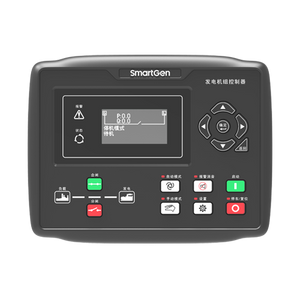

SmartGen HGM8110DC-2 Generator controller
SmartGen HGM8110DC-2 Generator controller
SmartGen HGM8110DC-2 Generator controller
SMARTGEN

SmartGen HGM8110DC-2 Generator controller

Regular price $1,131.00 $0.00
Shipping calculated at checkout.

Technical Parameters:
Display VFD
Operation Panel Silicon Rubber
Language Chinese & English & Others
Digital Input 8
Relay Output 8
Analogue Input 5
AC System 1P2W/2P3W/3P3W/3P4W
Alternator Frequency 50/60Hz
CANBUS(1939) ?
RTC & Event Log ?
Scheduled Start Genset ?
Maintenance ?
Ethernet ?
Case Dimensions(mm) 242*186*53(mm)
Panel Cutout(mm) 214*160(mm)
Operating Temp. (-40~+70)?

Product Overview:
HGM8110DC-2 Genset Controller is especially designed for single unit system in DC and AC applications, which can adapt to extremely high/low temperature environments (-40~+70)°C. Controller applies self-luminous vacuum fluorescent graphic display (VFD) and electronic components which bear extreme high and low temperatures, so that it can work reliably under extreme temperatures. After careful consideration about electromagnetic compatibility under various occasions at designing the controller, this provides powerful guarantee for the controller to work reliably under complex environment of strong electromagnetic interference. Controller is pluggable terminal structure, which is very convenient for product maintenance and upgrade and update. Controller can display Chinese, English and other various languages.

HGM8110DC-2 Genset Controller integrates digitization, intelligentization and network technology which is used for genset automation and monitoring system of single unit to achieve automatic start/stop, DC and AC data measurement, alarm protection and "three remote" functions. Controller adopts 32-bit micro-processor technology, realizing precise measurement of various parameters, fixed set-point adjusting etc. A majority of parameters can be configured from front panel, and all parameters can be configured by PC via USB port, or RS485 or RS232 or ETHERNET to adjust and monitor. It can be widely used in all types of automatic genset control system with compact structure, simple wiring, and high reliability.

MODELS COMPARISON

HGM8100DC series controllers include HGM8110DC and HGM8110DC-2. HGM8110DC-2 is the upgraded version of HGM8110DC. Model comparison of HGM8110DC and HGM8110DC-2 is as Table

Models

HGM8110DC

HGM8110DC-2

Display

VFD

DC Monitoring

?

?

Mains Monitoring

None

None

Input Number

8

8

Output Number

8

8

Sensor Number

5

5

Earth Current

?

?

Schedule Function

?

?

RS485

?

?

ETHERNET

?

?

RS232

?

?

J1939

?

?

CANBUS Port Number

2

3

USB

?

?

Real-time Clock

?

?

Event Log

?

?

Expand Input/Output

?

?



PERFORMANCE AND CHARACTERISTICS

HGM8110DC-2: It is DC genset controller and used for single automation systems to control genset start/stop through remote signal control; It is especially suitable for single unit automation system made up of 1-way DC and 1-way AC.

Main characteristics are as below,

32-bit ARM SCM, highly integrated hardware, reliability gets improved;

Vacuum fluorescent display (VFD), selectable Chinese/English interface which can be chosen at the site, making commissioning convenience for factory personnel;

LCD adopts hard screen acrylic material with good wear-resisting and scratch-resisting;

Silicone panel and pushbuttons, stronger adaptability of extreme temperature environments;

RS485 and RS232 communication interfaces, which can realize "Three remote functions" (remote control, remote measuring and remote communication) by using MODBUS protocol;

ETHERNET communication port, which can realize ETHERNET monitoring method (controller with ETHERNET port is needed);

Equipped with CANBUS port, which can connect ECU engine with J1939, which not only can monitor frequently-used data (such as water temperature, oil pressure, speed, fuel consumption and so on) of ECU machine, but also control starting up, shutdown , raising speed and speed droop via CANBUS port (controller with CANBUS interface is needed);

Suitable for 3-phase 4-wire, 3-phase 3-wire, single phase 2-wire, and 2-phase 3-wire systems with voltage 120/240V and system with frequency 50/60Hz;

Collects and shows AC 3-phase voltage, current, frequency, power parameters:

Collects and shows DC Gen voltage, current, power parameters:

AC DC

Line voltage (Uab, Ubc, and Uca) voltage U

Phase voltage (Ua, Ub, and Uc) Power

Phase sequence Current I

Frequency Hz Accumulative Electric Power

Load

Current Ia, Ib, Ic A (unit)

Each phase and total active power P kW (unit)

Each phase and total reactive power Q kvar (unit)

Each phase and total apparent power S kVA (unit)

Each phase and average power factor ? 1 (unit)

Accumulate total generator power W kWh, kvarh, kVAh (unit)

Earth current I A (unit)

For AC Generator, controller has over and under voltage, over and under frequency, over current, over power, reverse power, loss of phase and reverse phase sequence detection functions; for DC Generator, controller has over and under voltage, over current, and over power detection functions;

3 fixed analog sensors (temperature, oil pressure and fuel level).

2 configurable analog sensors can be set to sensor of temperature, oil pressure or fuel level; resistor/voltage/current type sensors are supported;

Precisely measure various parameters of engine:

Temp. (WT) °C/°F can be selected

Oil pressure (OP) kPa/psi/bar can be selected

Fuel level (FL) %(unit)

Speed (SPD) r/min (unit)

Voltage of Battery (VB) V (unit)

Voltage of Charger (VD) V (unit)

Hour counter (HC) accumulative to max. 65535 hours.

Start times accumulative to max. 65535 times.

Control and protection function: realize automatic start/stop of the diesel gen-set, breaker close and open (ATS transfer) control and perfect fault indication protection function.

All output ports are relay outputs;

Parameter setting function: parameters can be modified by users and stored in internal FLASH memory and cannot be lost even in case of power outage; most of them can be adjusted by using front panel of the controller and all of them can be modified by using PC via USB port, RS485, RS232 or ETHERNET ports.

Multiple curves of temperature, oil pressure, and fuel level sensors can be used directly and users can define the sensor curves by themselves.

Multiple crank disconnect conditions (speed sensor, oil pressure, generator frequency) are optional.

Wide power supply range DC(8~35)V, suitable for different starting battery voltage environment;

Event log, real-time clock, scheduled start & stop generator functions (can be set to start genset once a day/week/month with load or not).

PLC (Programmable Logic Controller) function. Users can use graphical programming to achieve specific functions.

Can be used as an indicating instrument (only for indication and alarm, no action for relay).

Maintenance function. Actions (warning, shutdown or trip and stop) can be set when maintenance time is out.

All parameters are digitally adjusted, getting rid of conventional analog modulation with normal potentiometer, improving whole case's reliability and stability;

Ingress Protection level IP65 due to rubber gasket installed between the controller enclosure and control window;

Metal fixing clips are used to fix controller, outstanding performance in high temperature environment;

Modular design, pluggable connection terminals and embedded installation way; compact structure with easy mounting.

Accumulative running A and B, accumulative electric power A and B; users can zero clear them and accumulate them again, making convenience for users.
