SmartGen HWP90A Engine water heater

Technical Parameters:
Rated Power 9000W
Rated Voltage AC 420V
Rated Current 12.5A
Engine Displacement(L) (50~75)L
Thermostat Range Off: (5~99)ºC On: (0~94)ºC
Overheating Switch Range Off: (95±3)ºC　 On: (80±6)ºC
Electrical Strength AC 1.5kV 1min
Insulating Resistance ≥50MΩ
Inlet/Outlet Size 3/4"(Ф19.5mm)
Max. Water Pressure 0.5MPa
Protection Level IP44
Vibration Resistance (5~8)Hz Amplitude±7.5mm Triaxial (8~500)Hz a=2g Triaxial
Shock Resistance Half-sine Wave; apeak=50g; Triaxial
Pump Flow Velocity 40L/min (1.5m of lift)
Case Dimensions(mm) 504*255*426
Weight(kg) 15

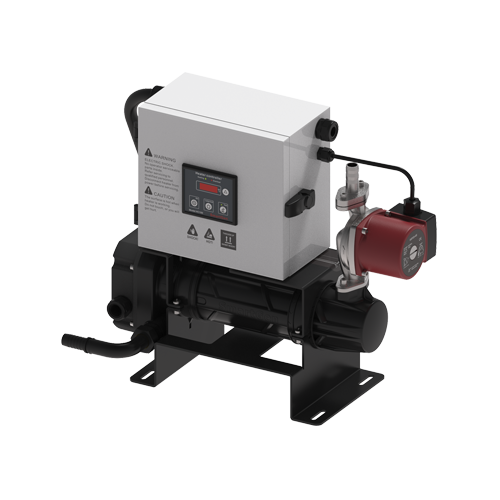

Product Overview:
HWP90A forced circulation engine water heater is composed of 3 parts (control section, water pump and water heater).

If the outside temperature is lower than 4℃, engine coolant and lubricant may condense into solid state and lose their lubricating and cooling properties during cranking, which can damage the engine. Thus engine heater should be installed to ensure normal starting and running of the engine when the outside temperature is lower than 4℃.

HWP60A forced circulation engine water heater combines the following features: cast stainless steel inner pipes and end closure with high corrosion resistance; heating and overheat light indicators; user-defined thermostat set point; dry heating and overheat protection.

This product is suitable for various engine with (50~75) L displacement.

PERFORMANCE AND CHARACTERISTICS

1. The circulating water pump adopts special customized pump with stainless steel pump head;

2. Microprocessor design of control section and PT100 temperature sampling. Coolant temperature can be set via the control panel. Four digital LED display, current coolant temperature and all kinds of set point temperature can be displayed clearly;

3. Dry heating and overheat protection due to the inner overheating temperature detect switch;

4. Separately control of water pump and water heater: power on the water pump and water heater synchronously, once the set temperature has reached, water heater will be powered off firstly, after 60s, following is water pump. The goal is to prevent heat concentration and significantly prolong water pump lifetime;

5. Manually test the water heater and water pump are normal or not via panel button;

6. Fine cast aluminum enclosure;

7. Stainless steel inner pipes and sealed end closure;

8. There is a water drain valve with seal ring on the bottom of the heater so as to be used when needed;

9. There is one-way inlet valve on the water inlet;

10. This product can work normally at -40℃ temperature.
