SmartGen HOC300 Over Current Protection Module

$174.00

Shipping calculated at checkout.

Technical Parameters:
Overall Consumption 0.9W (Standby mode: ≤0.28W)
DC Supply DC(8～35)V
Case Dimensions(mm) 89.7*71.6*60.7
Operating Temp. (-25~+70)℃
Weight 0.24KG

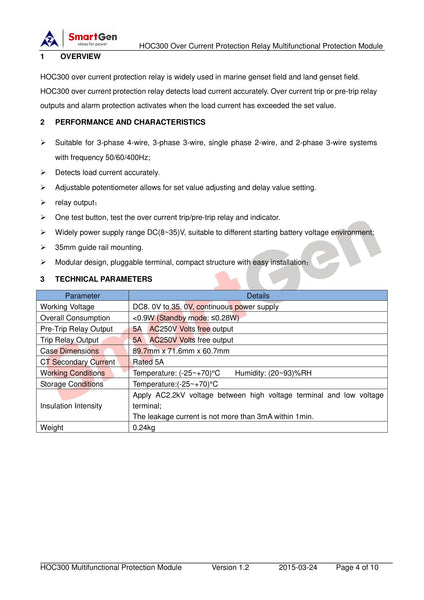

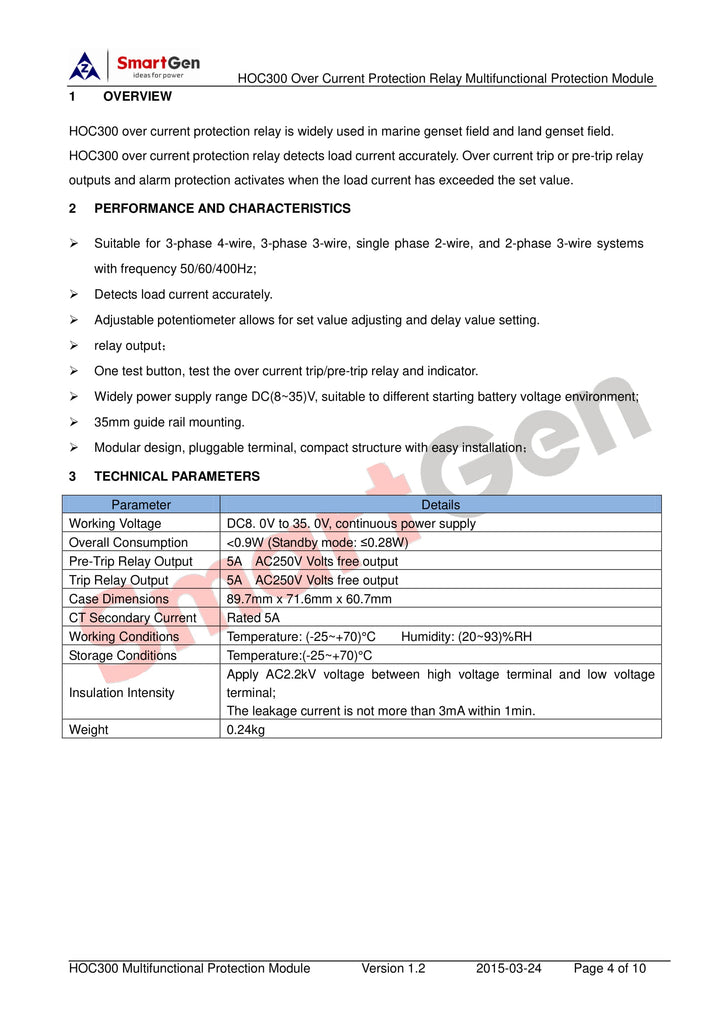

Product Overview:
HOC300 over current protection relay is widely used in marine genset field and land genset field.

HOC300 over current protection relay detects load current accurately. Over current trip or pre-trip relay outputs and alarm protection activates when the load current has exceeded the set value.

PERFORMANCE AND CHARACTERISTICS:

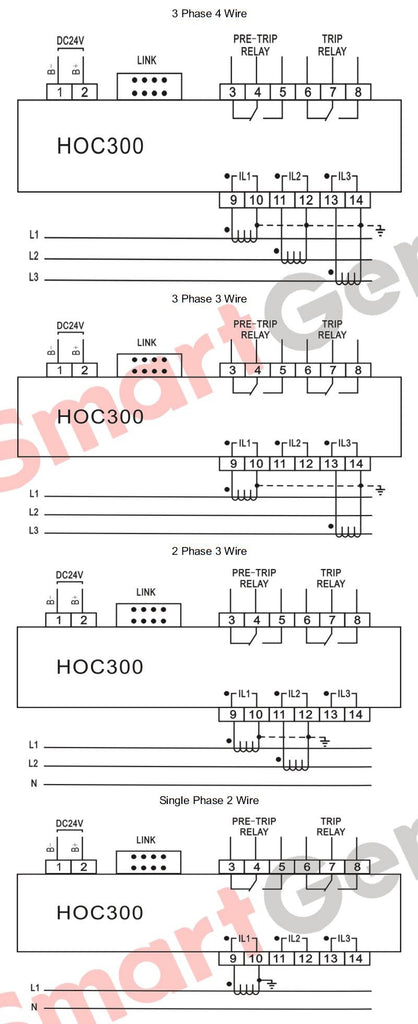

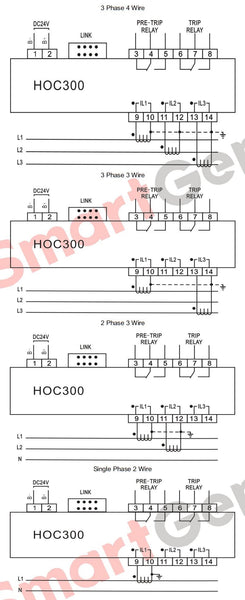

1. Suitable for 3-phase 4-wire, 3-phase 3-wire, single phase 2-wire, and 2-phase 3-wire systems with frequency 50/60/400Hz;
2. Detects load current accurately;
3. Adjustable potentiometer allows for set value adjusting and delay value setting;
4. relay output;
5. One test button, test the over current trip/pre-trip relay and indicator;
6. Widely power supply range DC(8-35)V, suitable to different starting battery voltage environment;
7. 35mm guide rail mounting;
8. Modular design, pluggable terminal, compact structure with easy installation.
