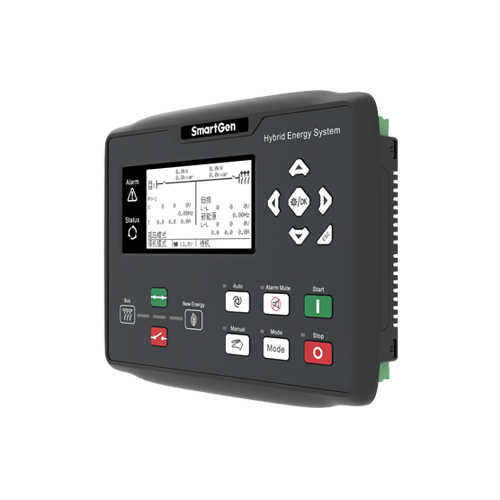

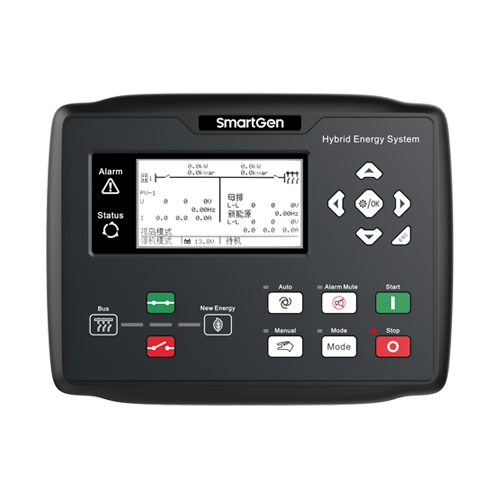

SmartGen HES9510 Hybrid Energy Controller

Technical Parameters:
Display LCD(240*128)
Operation Panel Silicon Rubber
Language Chinese & English & Others
Digital Input 10
Relay Output 10
Analogue Input 5
AC System 1P2W/2P3W/3P3W/3P4W
Alternator Frequency 50/60Hz
kW/Amp Detecting & Display ●
Monitor Interface Ethernet/RS485
Programmable Interface USB/RS485
RTC & Event Log ●
Scheduled Start Genset ●
ULP ●
Can Expand Digital Input/Output Modules ●
Ethernet ●
DC Supply DC(8-35)V
Case Dimensions(mm) 242*186*49
Panel Cutout(mm) 214*160
Operating Temp. (-25~+70)●

Product Overview:
HES9510 Hybrid Energy Controller is used for diesel gensets with solar energy, wind energy, energy storage battery in inverter as output energy systems, which can control the start and stop of inverter power supply, output mode, output size as well output closing/opening of breaker, etc. It can also control the start and stop of gensets in system according to the loads, provide spinning reverse for the inverter power supply. In addition, it can also control the inverter for energy storage battery charging and discharging management to realize the data measurement, alarm protection as well as "three-remote" functions. It fits with large LCD display, optional Chinese, English and other languages interface, and it is reliable and easy to use.

HES9510 Hybrid Energy Controller applies 32-bit microprocessor technology, realizing the functions of precise measurement, fixed value adjustment, timing and setting value of various parameters. Most parameters can be adjusted from the front panel of the controller, and all parameters can be adjusted by PC via USB or RS485, Ethernet interface. Its compact structure, simple connection and high reliability can be widely used in hybrid energy control system.



PERFORMANCE AND CHARACTERISTICS

1. With ARM-based 32-bit SCM, high integration of hardware and more reliable;
2. 240x128 LCD with backlight, multilingual interface (including English, Chinese or other languages) which can be chosen on site, making commissioning convenient for factory personnel;
3. Improved LCD wear-resistance and scratch resistance due to hard screen acrylic;
4. Silicon panel and pushbuttons for better operation in high/low temperature environment;
5. Two RS485 communication ports enable remote control, remote measuring, remote communication via MODBUS protocol;
6. A variety of built-in protocols enable communication with inverters such as HUAWEI;
7. Suitable for 3-phase 4-wire, 3-phase 3-wire, single phase 2-wire, and 2-phase 3-wire systems with voltage 120/240V and frequency 50/60Hz;
8. Collects and displays 3-phase voltage, frequency, 3-phase current, power and voltage harmonic parameters;
9. For Busbar, controller has loss of phase and reverse phase sequence detection functions; For new energy, controller has over voltage, under voltage, over frequency, under frequency, high unbalanced voltage, high total harmonic distortion, over current, earth fault, high unbalanced current, low power factor, over power, reverse power, loss of excitation, loss of phase, reverse phase sequence detection functions;
10. 5 analog sensor inputs can be set to temperature, pressure, level, power inverters or irradiance sensors;
11. Partial sensor inputs can connect with resistor type, voltage type or current type sensors;
12. Voltage, current and power display of up to 4-way solar panel channels can be set;
13. The maximum capacity of PV calculated by collecting up to 3-way solar panel temperature and 3-way solar irradiance;
14. Various of temperature, pressure and oil level sensor curves can be used directly or customized;
15. Busbar normal automatic closing and starting with load, automatic soft loading and soft unloading;
16. Two active power control modes (fixed power, inverter control);
17. Three reactive power control modes (fixed power, power factor, inverter control);
18. Each energy can be set or calculated as rated active power, rated reactive power and rated apparent power. The rated active power of PV power station can be calculated in real time according to the sensor data and weather data, the rated power of gensets can be calculated in real time according to the information of online units, the rated power of energy storage power station and mains supply can be set for direct use;
19. The controller is able to control the priority of energy use (mains supply, gensets, PV power station (including wind power station), energy storage power station). Each energy can be prioritized separately, and the smaller the priority value, the higher the priority. Default: PV power station >energy storage station >mains supply>gensets. It supports dynamic prioritization?
20. The input port can be set to make them unavailable for mains supply, PV power station, gensets and energy storage power station. When the energy is unavailable, the energy will no longer provide energy and spinning reserve.
21. Parameter setting function: parameters can be modified by users and stored in internal EEPROM memory, and cannot be lost even in case of power outage; most of them can be adjusted from the front panel of the controller and all of them can be modified on PC by USB ports and RS485 ports;
22. Wide power supply range DC(8~35)V, suitable for different starting battery voltage environment;
23. Event log, real-time clock;
24. Black box function, which allows to record the genset data of 5 alarms;
25. All parameters apply digital adjustment, getting rid of conventional analogue modulation with normal potentiometer, and improving genset reliability and stability;
26. IP65 waterproof level is achieved with the help of rubber-ring gasket between shell and control panel;
27. Metal fixing clips employed to fix the controller and make it perform better under high temperature environment;

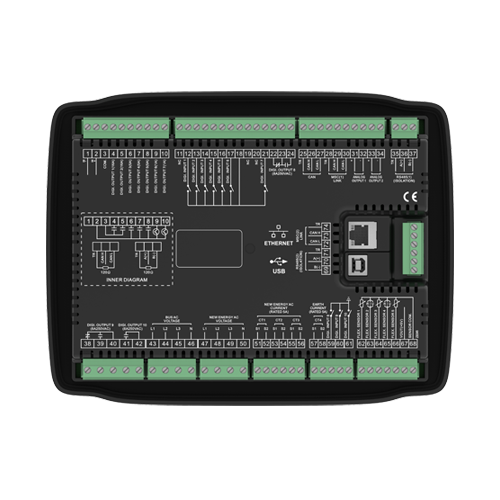

28. Modular structure design, self-extinguishing ABS plastic shell, pluggable terminal, built-in mounting?compact structure with easy installation;
